[GG-5 Glue gun 100W] High temperature hot melt glue gun GG-5 is suitable for 11mm sol strip DIY electronic tools

[Name] : GG-5 High temperature hot melt glue gun

【 Brand 】SNAK
[Model] : GG-5
[Origin] : Guangdong
[Features] : Lead-free alloy nozzle, environmental protection pioneer
[Power] : 100W
【 Specification 】 : 16cm*15cm
[Frequency] : 50~60Hz
[voltage] : AC 110-240V
[Glue Flow] : 300~800ml/h
[With glue Sticks] : Applicable to 10.7-11.3mm hot melt glue sticks
[Quantity per box Q.C] : 48PCS

[Power cord] : 1 meter wire with switch
【 Weight 】
[1] : 0.22kg/ branch (including plastic film packaging)
[2] : 3.03kg/8 pieces/small box; 12.8kg/48 pieces/large box
【 Carton size 】 : 51*48.5*38.5cm
【 Product Application 】
[1] : Toy models, artificial flowers, Christmas trees, decorations
[2] : metal products, wood products, cardboard, electronic circuit boards, etc

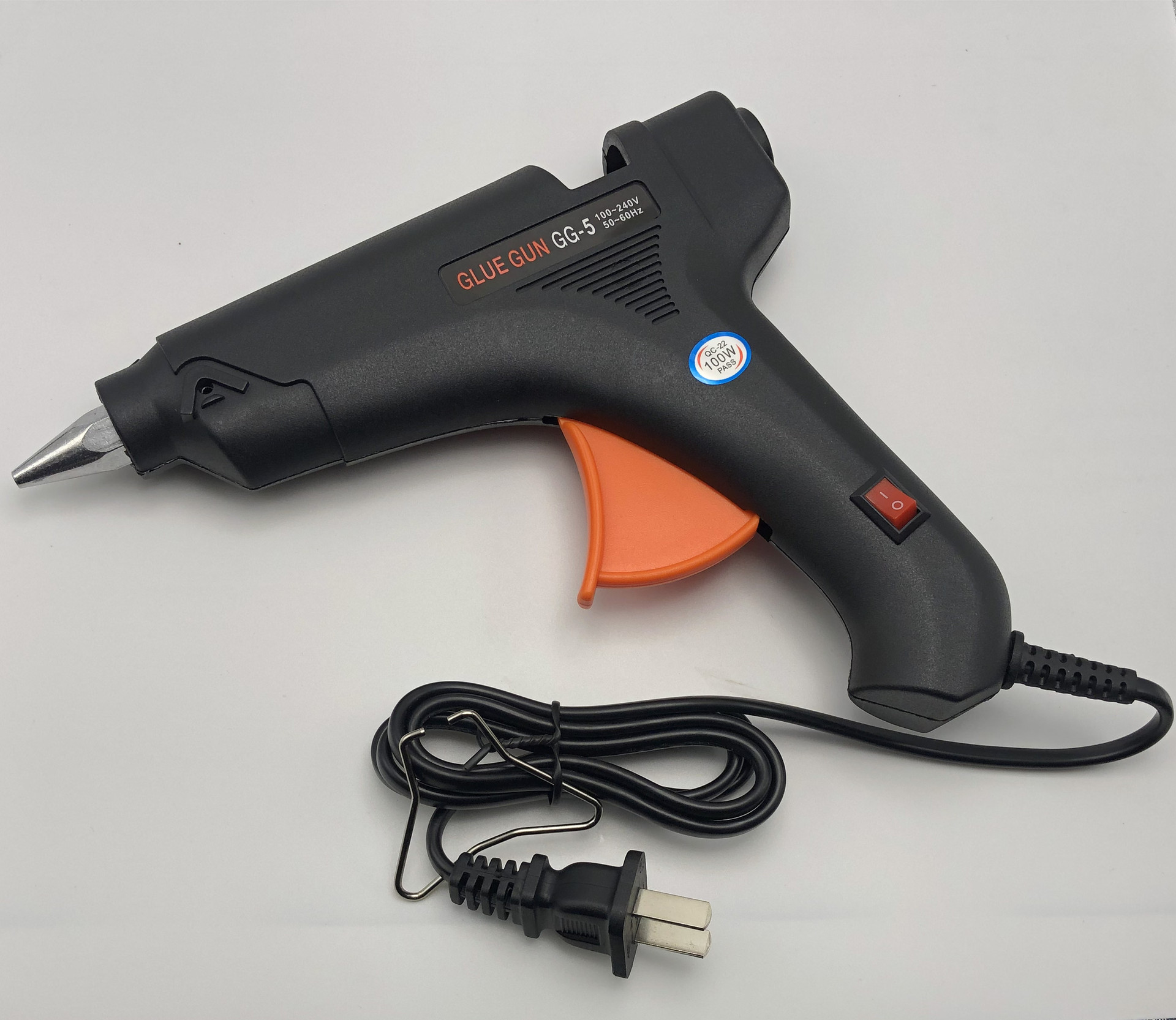

Sankes brand GG-5 Hot melt glue gun:

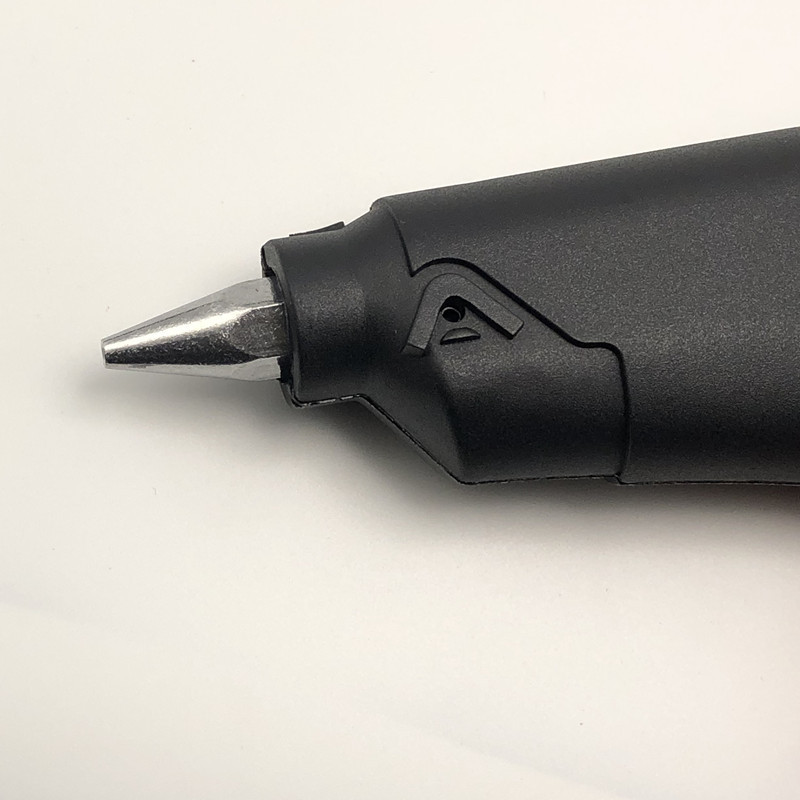

GG-5 Rubber gun alloy aluminum nozzle, nozzle close-up:

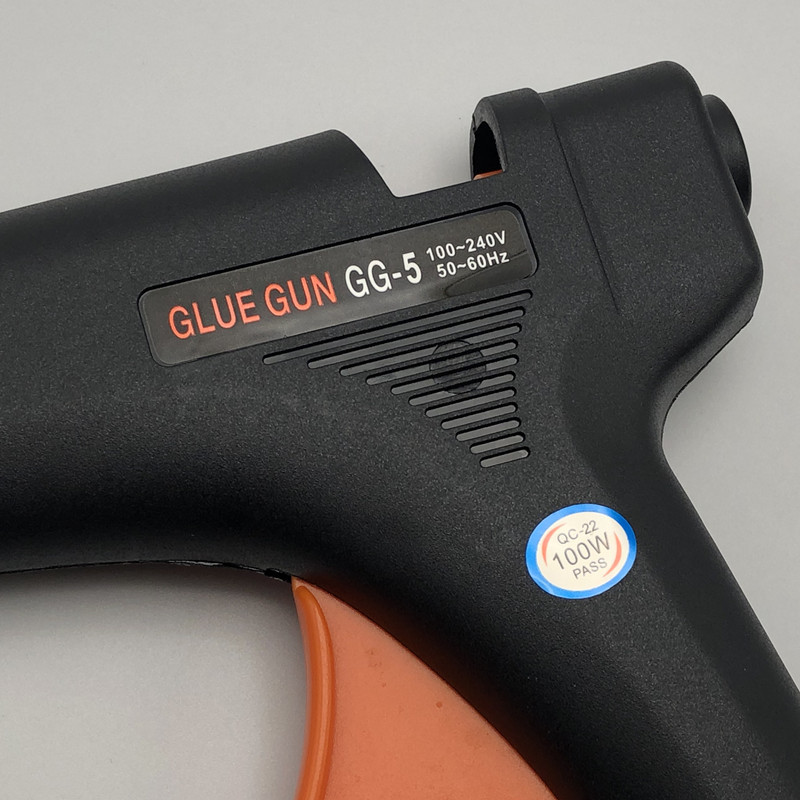

GG-5 Hot Melt Gun Identification Plate:

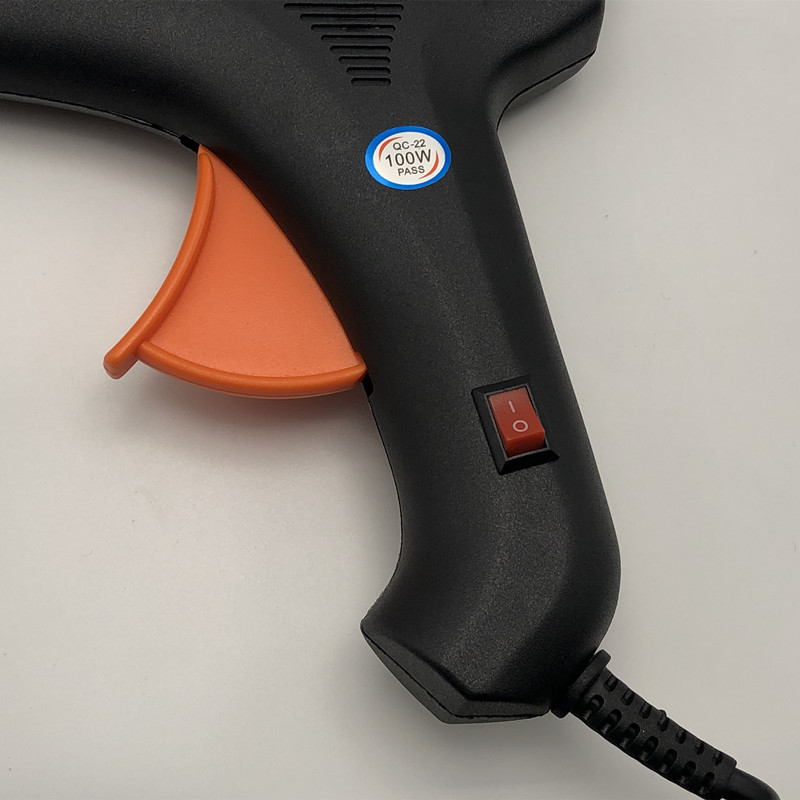

Hot melt glue gun 100W with switch GG-5:

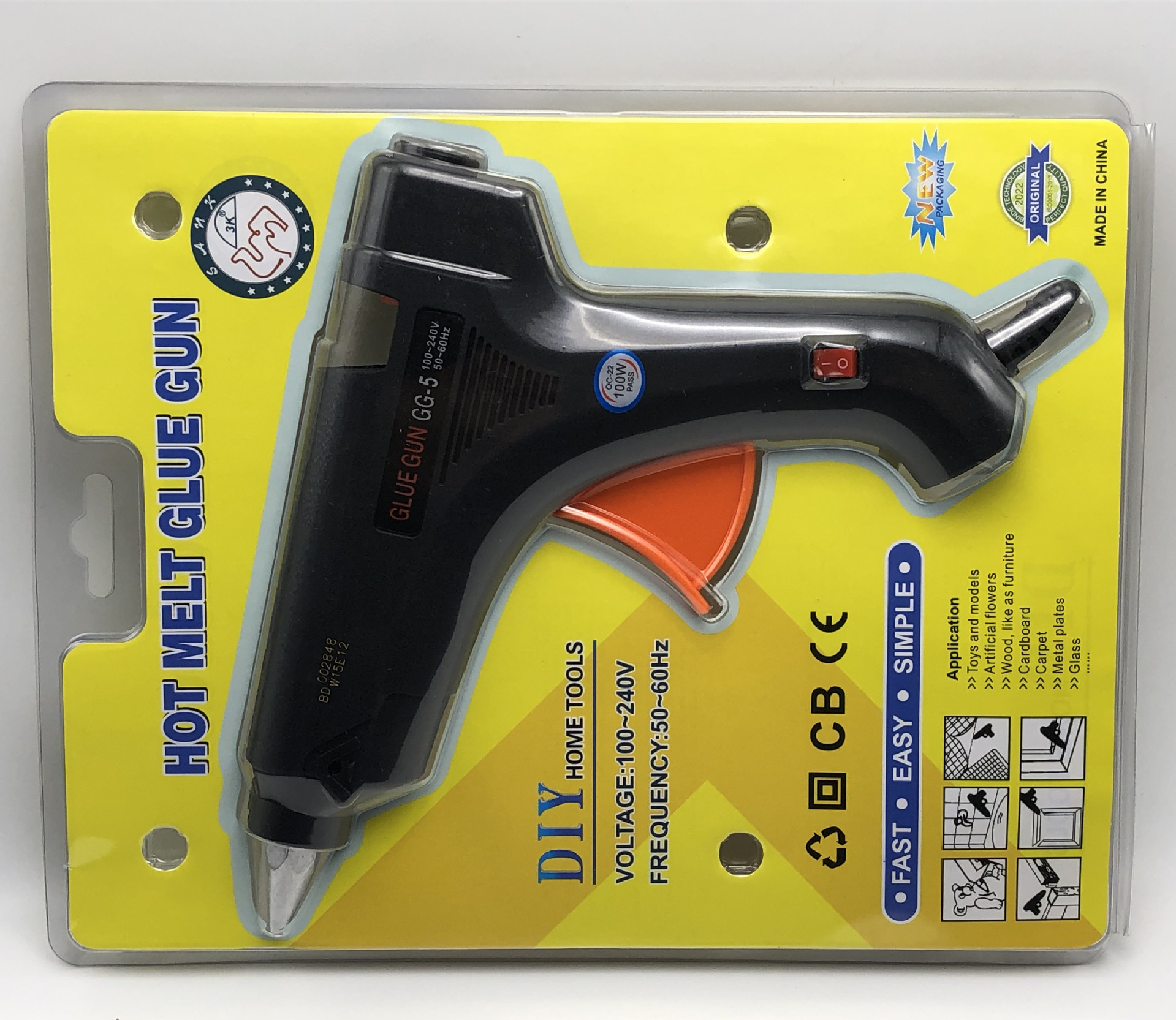

GT-5 package drawing:

Please preheat the GT-10 100W hot melt glue gun for 3-5 minutes before use.

Keep the surface of the hot melt rubber strip clean to prevent impurities from blocking the nozzle.
Please stand upright on the table when the glue gun is not in use, do not put it upside down, otherwise it will cause the phenomenon of pouring glue, which will cause the glue gun to burn out, and the rubber strip will become thick and stick the entrance of the glue gun.
Do not remove the glue strip from the glue gun when the glue strip is not used up.
If the rubber strip in the glue gun backflows, stop using it immediately and do not use it until it is cleaned.
Heat the glue gun continuously for more than 15 minutes
If the glue gun is not found in the process of use, please check whether the glue gun is hot:
(1) If the glue gun does not heat normally, the reasons may be:
a, the glue gun power supply is not plugged in;
b, the glue gun is burned out due to short circuit.
(2) In the case of normal heating of the glue gun, the reasons may be:
a, the gun nozzle due to impurities blocked the glue mouth, should ask professionals to deal with;
b, the glue gun to make the rubber strip thicker, at this time just gently rotate the rubber strip and carefully pull out a small part of the back, strip the thick part of the rubber strip and continue to use.
Product application
Handicrafts, cloth, jewelry, artificial flowers, models, long hair toys, stuffed toys, PC board, electronic parts, leather products, ceramic products, ceramic tiles, plastic plastics, PVC, acrylic, ABS, metal, aluminum, food packaging, woodworking wood, furniture, paper, cardboard, cardboard, stone.

Two methods of use
1, this series of products can be used in the diameter of 10.7-11.3MM rubber strip
2, insert the rubber strip from the tail of the glue gun, send it to the gun barrel, plug in the power supply and preheat for 5-8 minutes, the pull plate machine can extrude the melt glue, and control the amount of glue produced.
3, in the process of use, if you can not use one rubber strip at a time, the rubber strip does not need to be removed, the next time you can plug in the power to preheat 5-8 minutes after direct use.

Three points to note:
1, this product is a high-temperature glue gun, if the user uses the size or type of rubber strip does not match, may lead to melt glue reflux or damage the glue gun.
2, when working, the nozzle of the glue gun and the melting adhesive temperature is high, do not touch the human body, do not use in flammable and explosive occasions.
3, when the glue gun is working, do not lift the glue gun high, the gun nozzle cannot face up, if the glue gun does not glue for 15 minutes, please cut off the power supply, so as not to melt the glue strip and cause damage to the glue gun
4, the new glue gun may appear a little smoke when it is used for the first time, which is a normal phenomenon, and the smoke is automatically eliminated after 30 minutes of use.
5, should always keep the gun tail slider clean, to ensure that the rubber strip can be smoothly into the barrel, do not pull the glue gun in the glue gun from the tail of the glue gun.
6, the glue gun should be placed in a ventilated and dry place when not in use. Do not keep in wet or watery places, and do not keep in places where children or children can reach them.
7. The tool must be placed on its stand when not in use.
